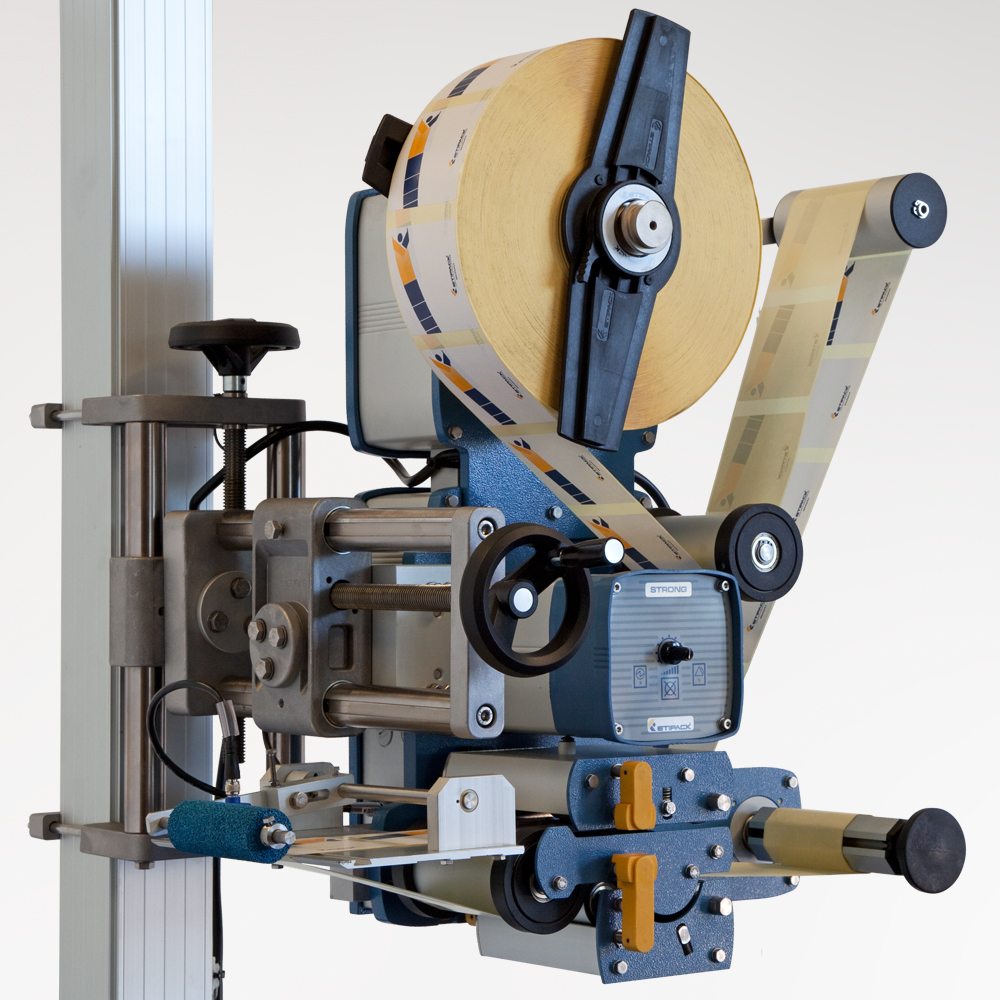

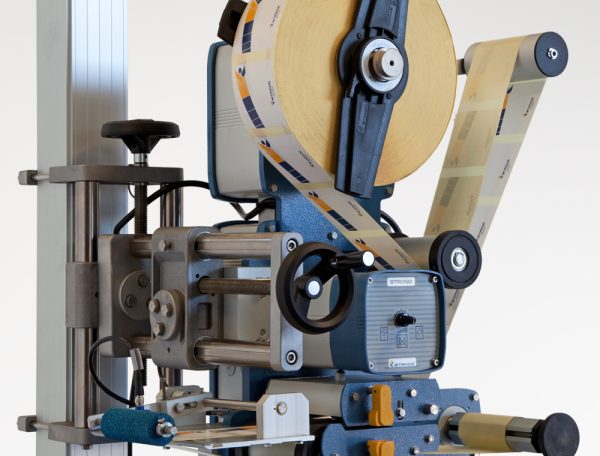

Etipack Labelling Machine: Entry level – Strong(30)


Automatic labelling machine for pressure-sensitive labels, for line speeds up to 30 metres/minute



The Etipack Strong labelling machine an entry-level model label applicator.  It is compact, robust, reliable and cost-effective.  Designed for a wide range of industrial labelling needs.



The Strong automatic labeller is available in 2 widths; 100mm or 200mm

The configuration is totally customisable with the fitting of a wide range of applicators, support columns and ancillary devices depending on the application requirements of the labels.

This label applicator is fully compatible with all models of print units – hot stamp, thermal transfer, inkjet- manufactured by Etipack and major manufacturers such as  ICE/Clearmark, Videojet, Markem, Datamax-Honeywell, EIDOS, EIDOS, Sato, HSA or Wolke, to print any codes, variable data and images.

This label applicator can serve as a print and apply machine  with the fitting of any thermal print unit available.

Features of the label applicator

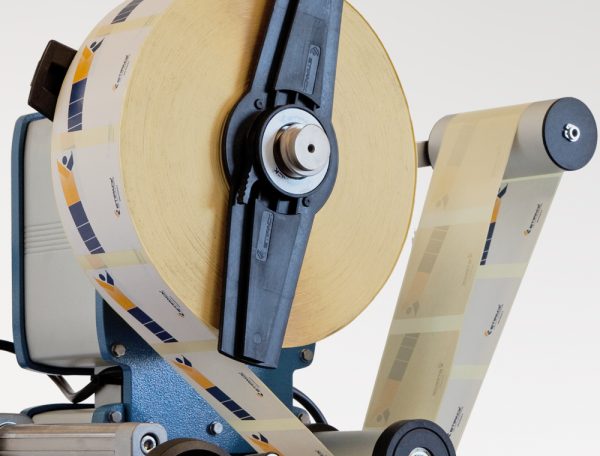

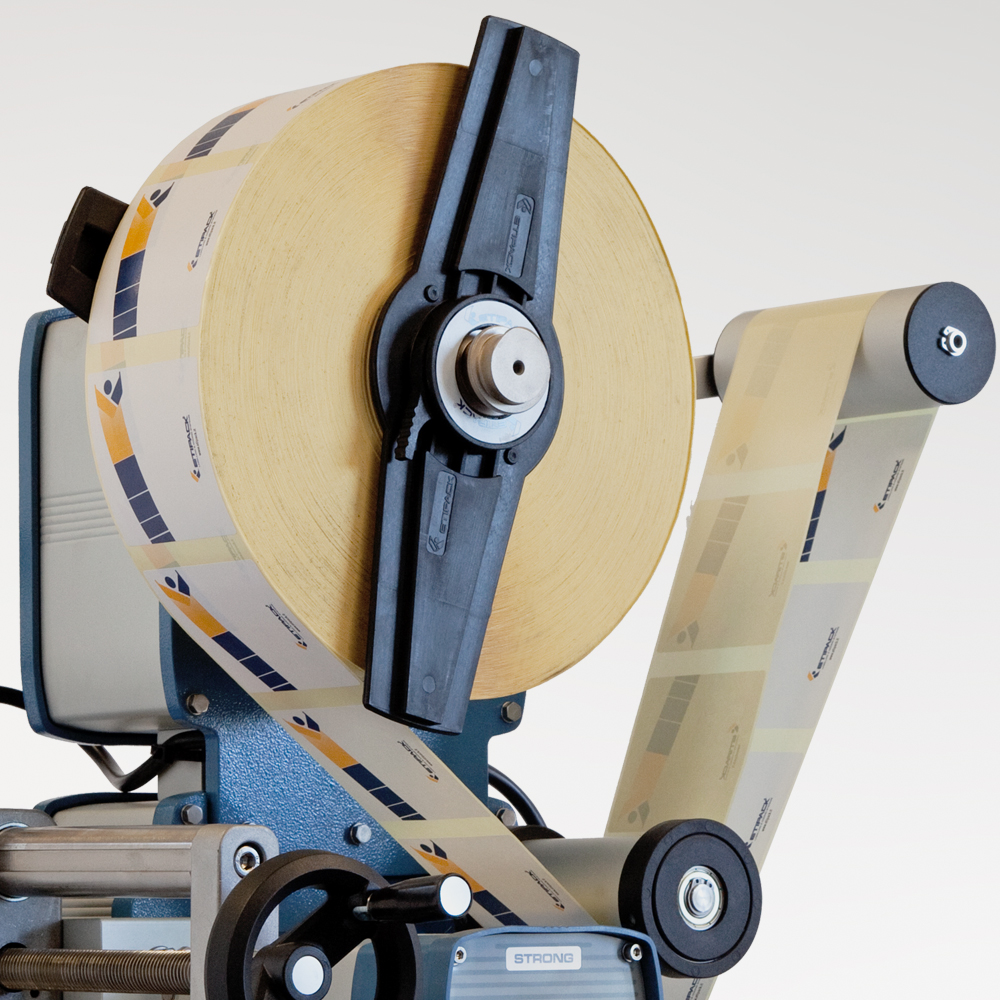

  • Unwinder with disc brake
  • Belt rewinder
  • Rewinder for plastic supports

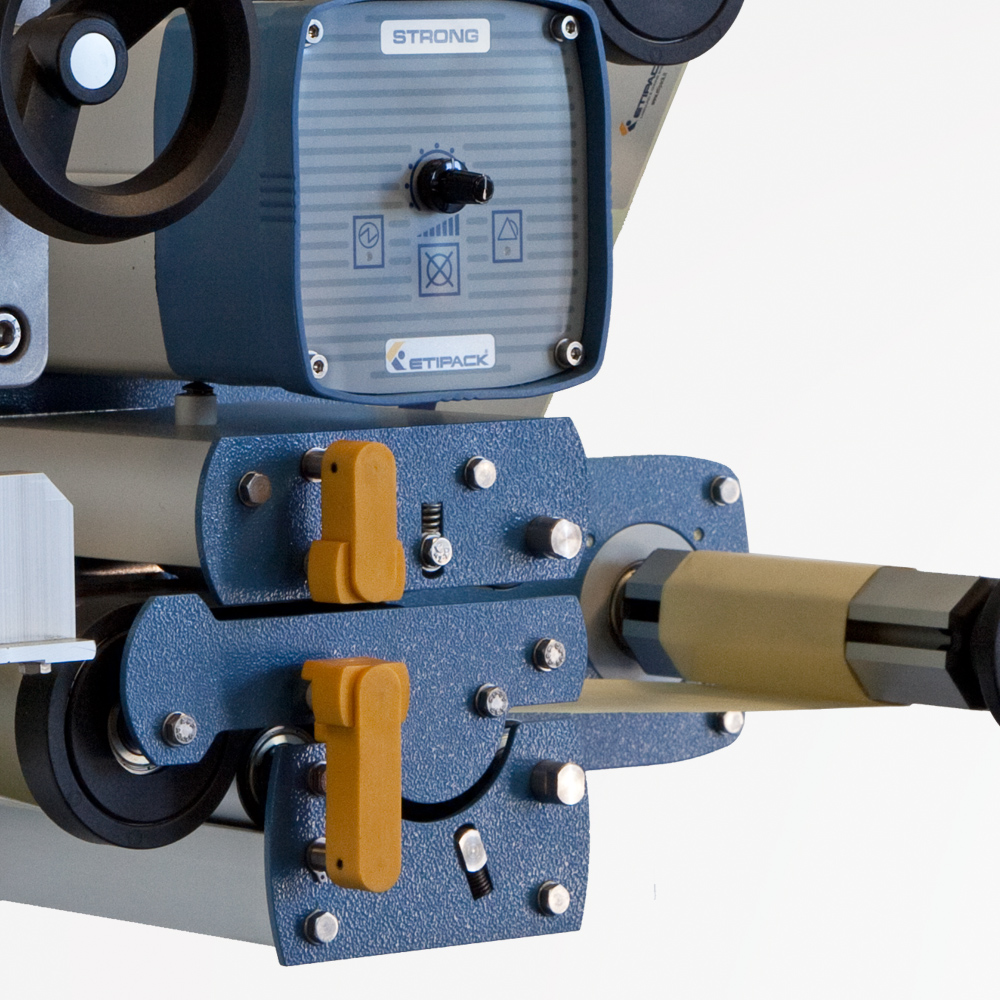

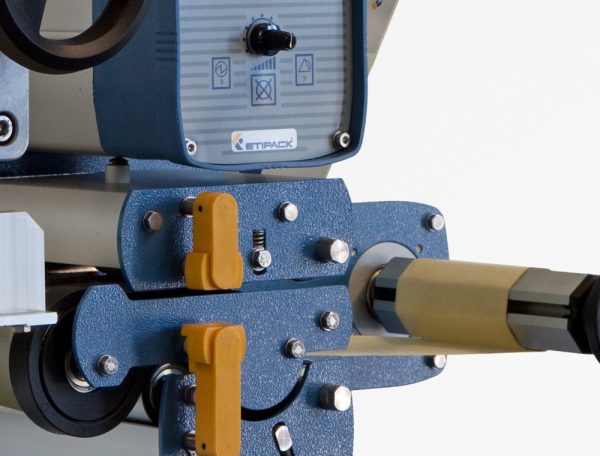

  • Membrane keyboard for main functions
  • End of coil control and / or jamming
  • Label step control
  • Pre-alarm end coil

Ancillary devices

  • Printing units (hot stamping, thermal transfer, ink jet)
  • Pneumatic applicators
  • Applicator for irregular surfaces
  • Rewinder for plastic supports
  • Display keyboard
  • Labelling control with  1 or 2 barriers
  • Printing control

Features

Features 100 200
Dispensing speed ≤ 30 m/min ≤ 20 m/min
Dispensing W 20 - 100 mm 20 - 200 mm
Outside reel Ø ≤ 280 mm ≤ 280 mm
Inside reel Ø 40 ÷ 75 mm 40 ÷ 75 mm
Motor Stepper motor Stepper motor
Stop Tolerance ± 0,5 mm ± 0,5 mm
Size L - W - H 581x325x608mm 581x425x608 mm
Power Supply 115/230 V, 50-60 Hz 115/230 V, 50-60 Hz
Electrical input 100 W 100 W
Elettrical protection IP 54 IP 54
Noise level 70 dB 70 dB
Version DX - SX DX - SX
