Automatic Print and Apply machine that applies the last printed label on the corner of moving boxes
Coupled with a Print & Apply labeller, the Corner Evo applicator is an automatic method of applying the last printed label on the corner of boxes and products on the move.

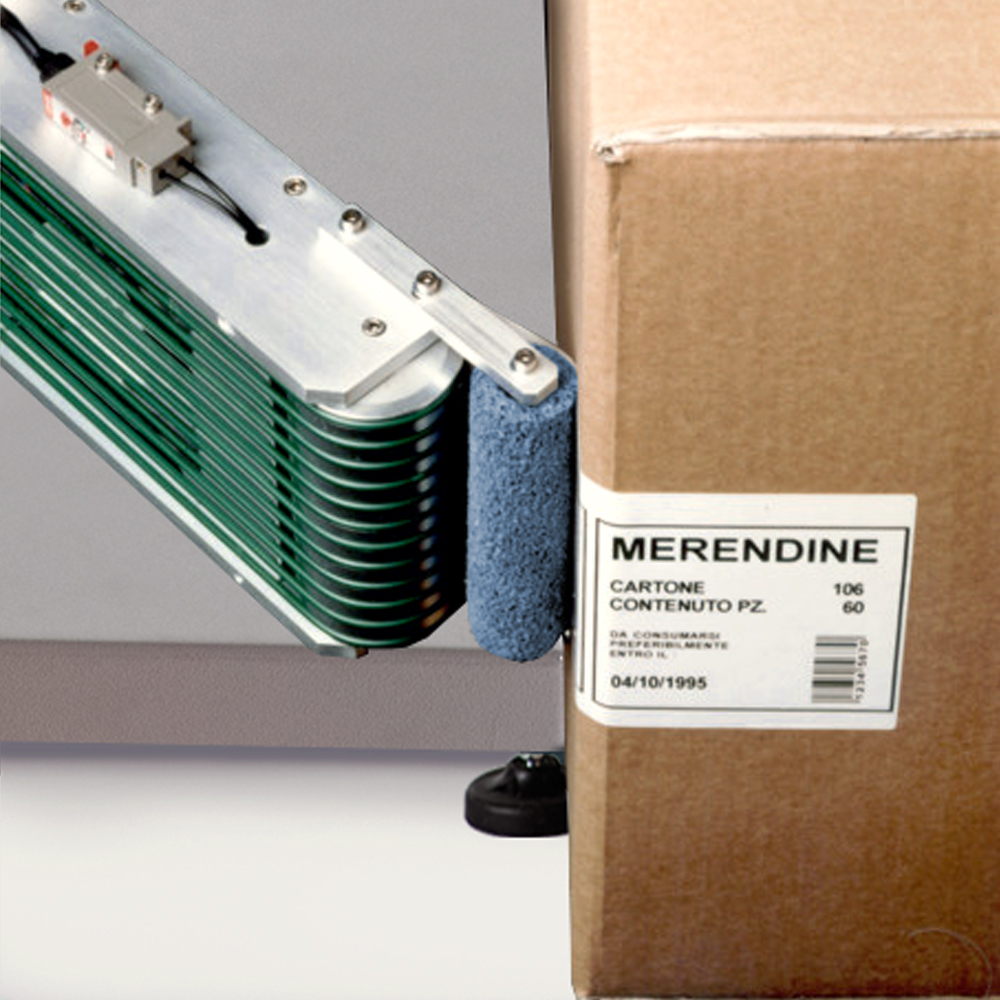

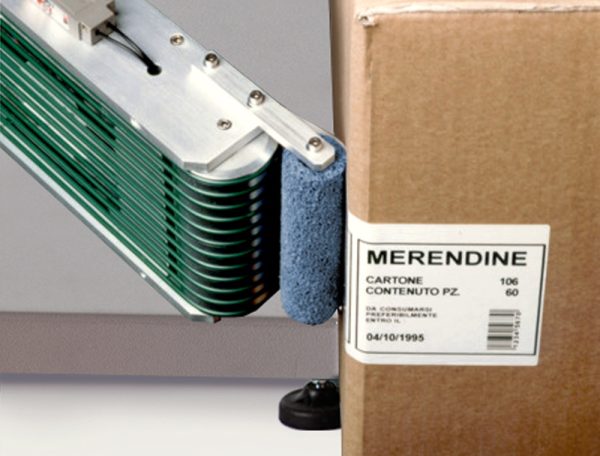

The core of the Corner print and apply system is an industrial thermal transfer printer with dual processor electronics and equipped with a motorized belts applicator that keeps the label by a vacuum system and releases it on the corner (front and side or front and top) of boxes and products on the move.
Corner Evo is available in 2 versions: Corner Evo 4 with a 4″ width and Corner 6 with a 6″ width.
The XPA 934 and XPA 936 Print and Apply machines work with reels of thermal transfer ribbon 600 m long, in order to ensure high autonomy in working cycles.
Resolution 12 dots/mm
Maximum printing speed 300 mm/s
Maximum label width 104 mm (Corner Evo 4), 150 mm (Corner Evo 6)
Features of the Print and Apply
- Drawing unit 120 mm (170 mm with the 6″ version)
- Label reel 280 mm
- Printhead with historical control 8 dot/mm
- Interfaces RS232, LAN Ethernet
- Display keyboard for machine configuration
- Inner rewinder for liner paper
- Inner clock for date/time
- Ethernet cable
- Windows driver
- Floating applicator with motorized belts
- Electric panel board
- Air unit treatment
- Control for photocell applicator
Ancillary devices
- Start/stop label
- Start photocell
- PC
- Programs for label layout
- Cables
- Interfaces
- Control applied label
- Base and support structure
- U-shaped support structure
- Safety protections
