Etipack Carton Header Machine: Fold & Fix

For the automatic application of folded carton headers to bags

—

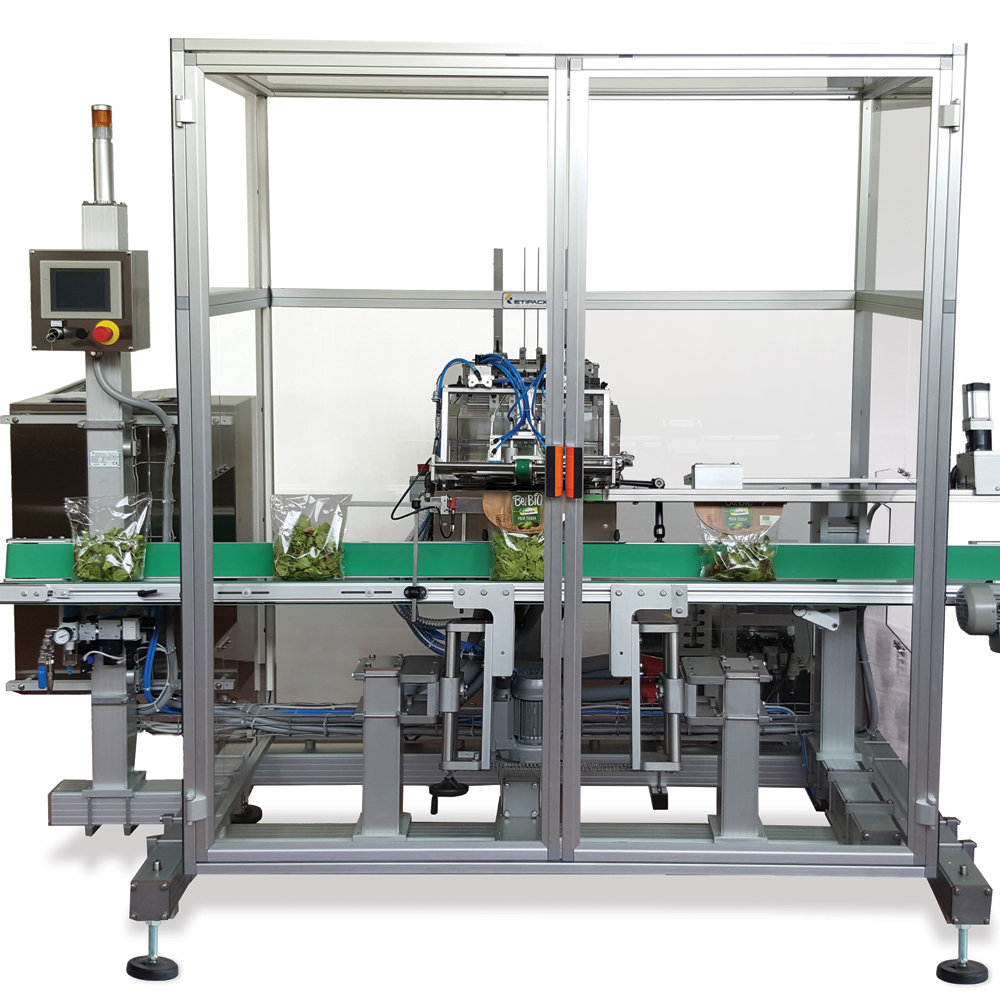

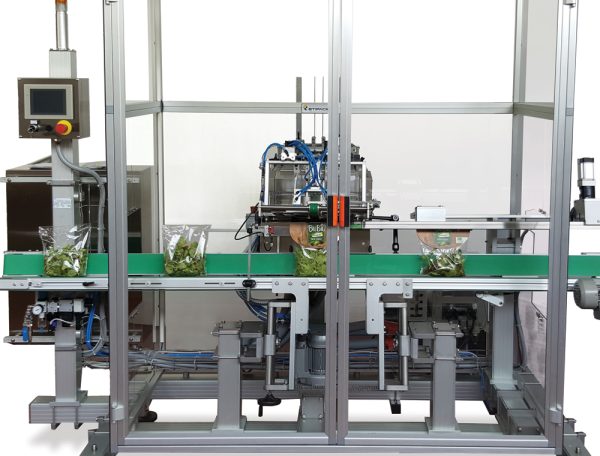

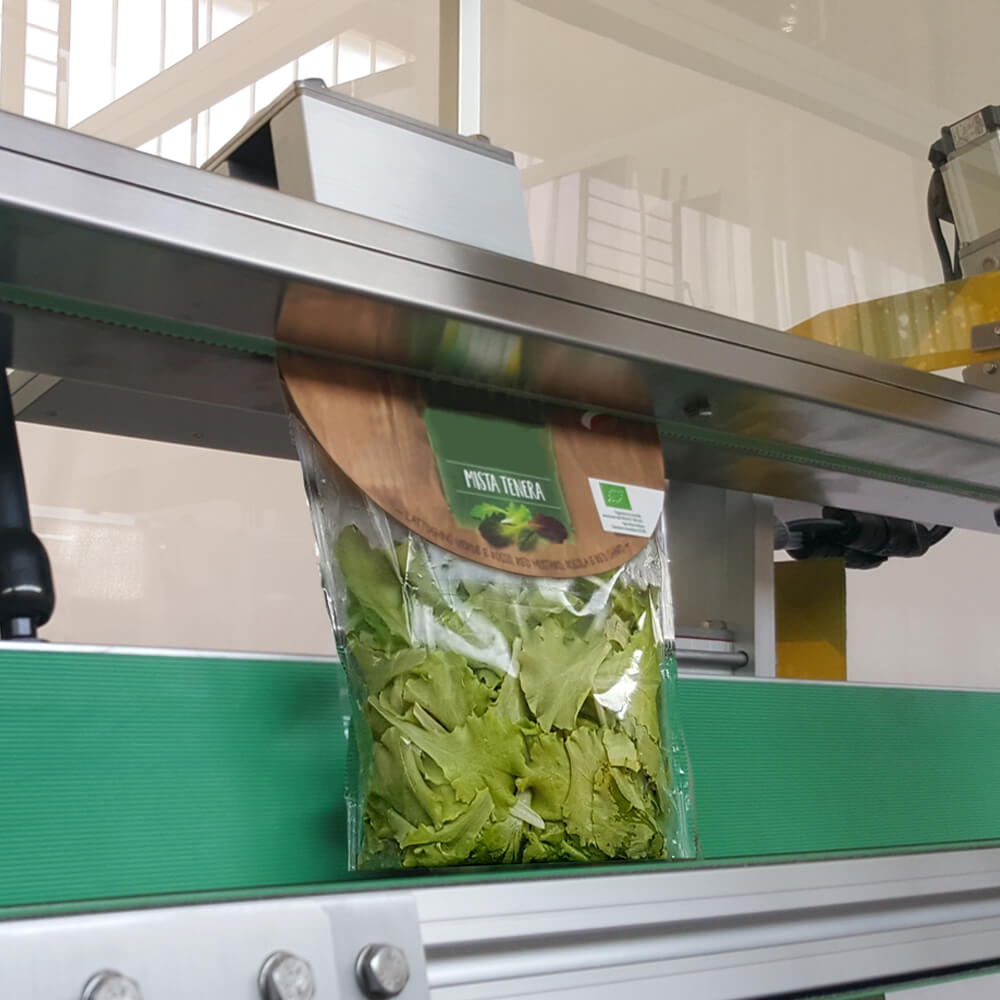

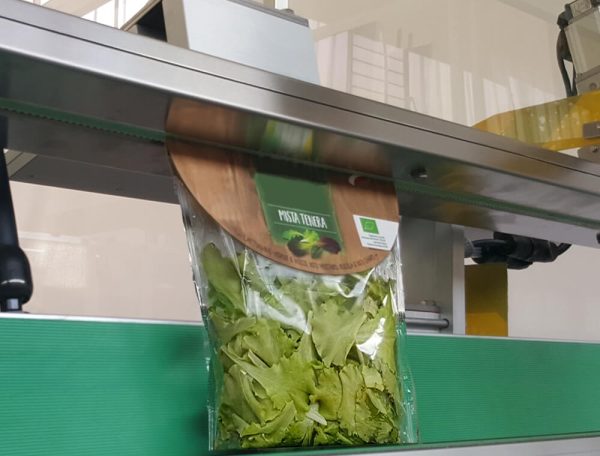

The Fold & Fix carton header machine is made up of the following main units:

  1. Pair of conveyor belts that transport and hold the loaded packs in place
  2. Placer unit (model Clippy) that would automatically pick and place headers on the bags; according to working conditions and carton headers, the system can work as well with a friction feeder (model Whizzy).
  3. Hot melt unit for gluing the carton header to the sachet

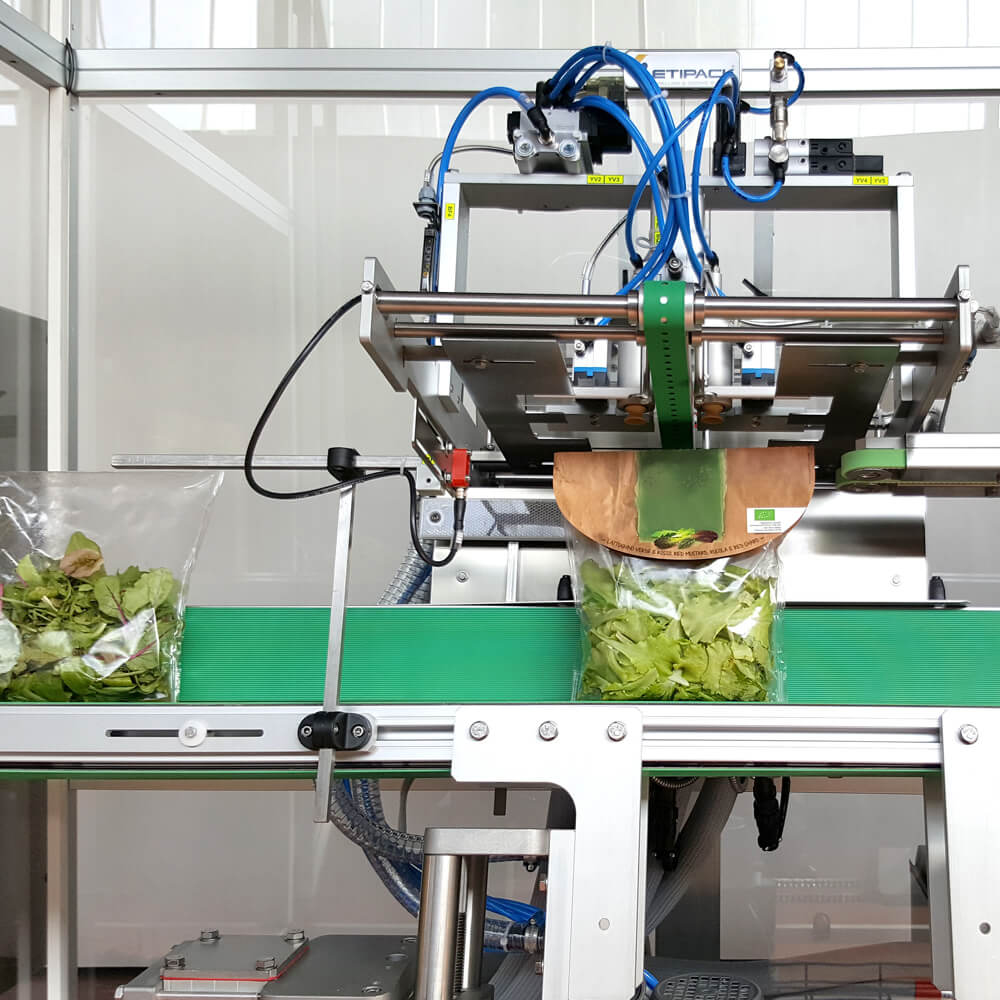

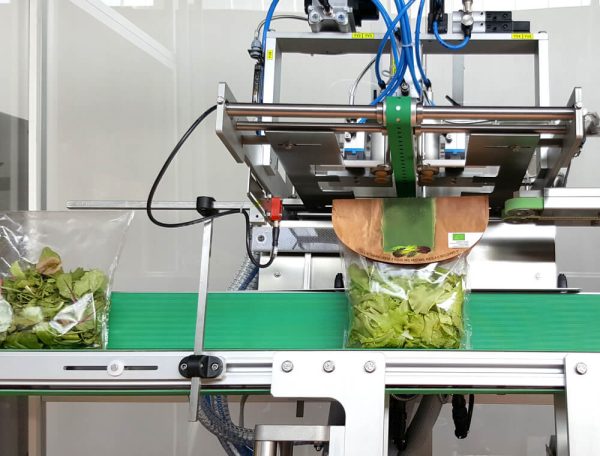

  4. Applicator unit that places and folds the cardboard on the package
  5. Product stabiliser device unit with opposing bands that completes the application by transporting the pack to the outlet, allowing the glue to adhere perfectly and solidify

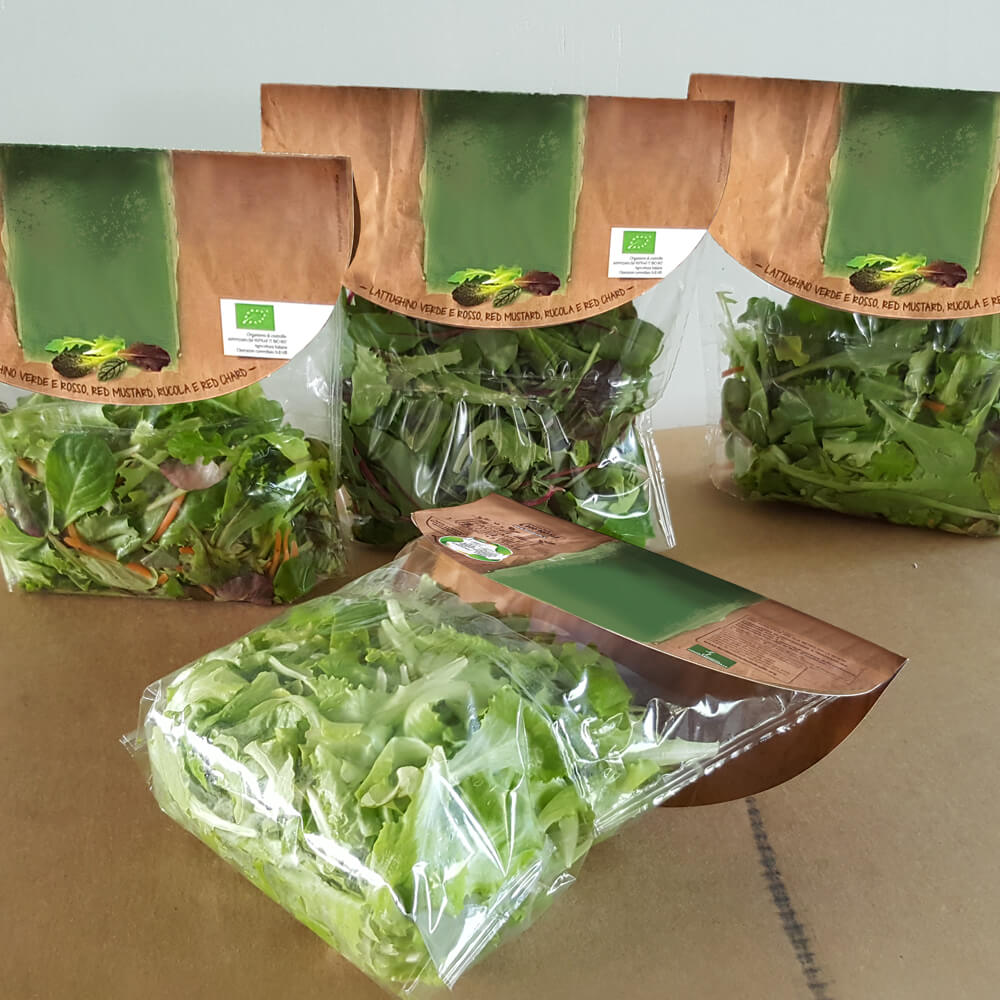

The Fold & Fix carton header machine has multiple functions: it serves as a tamper-evident seal since its removal involves tearing the bag or the cardboard itself, it allows the complete automation of the packaging process and it allows easy differentiation of the materials and their correct disposal, which is more and more a requirement for environmental sustainability.

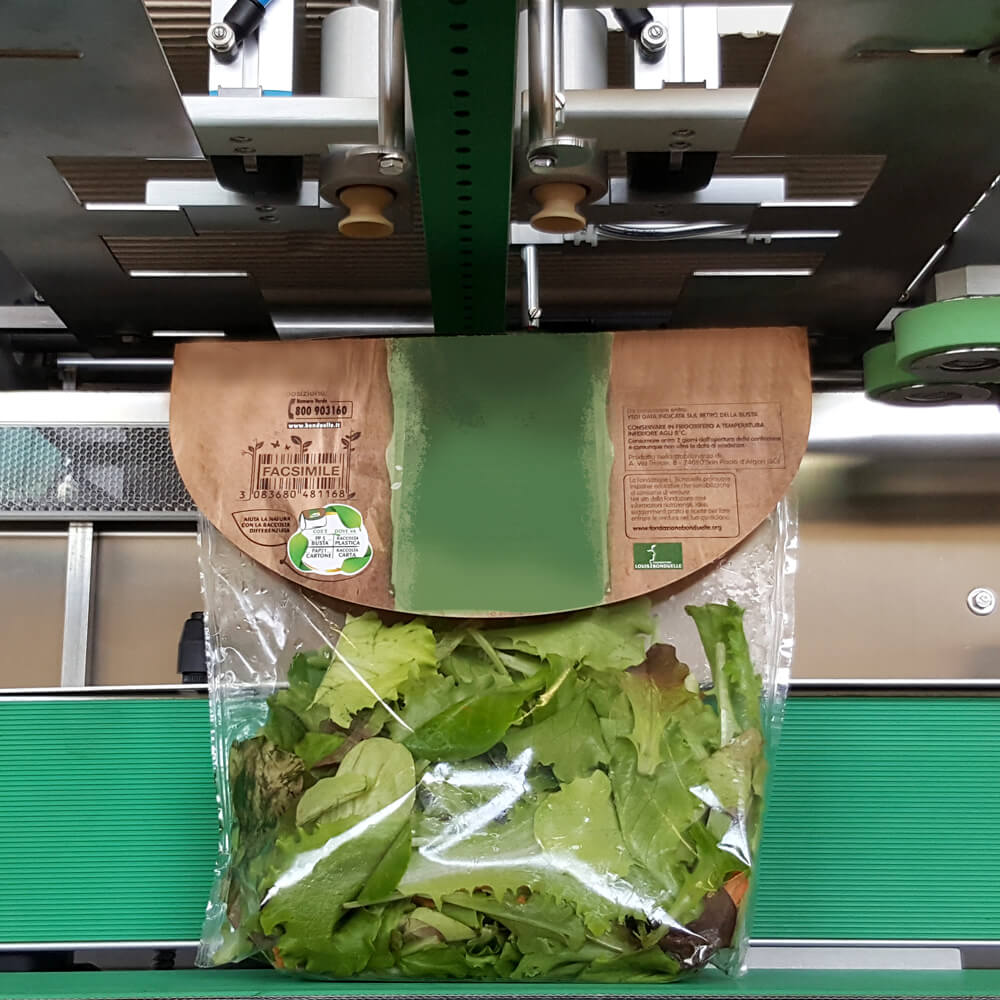

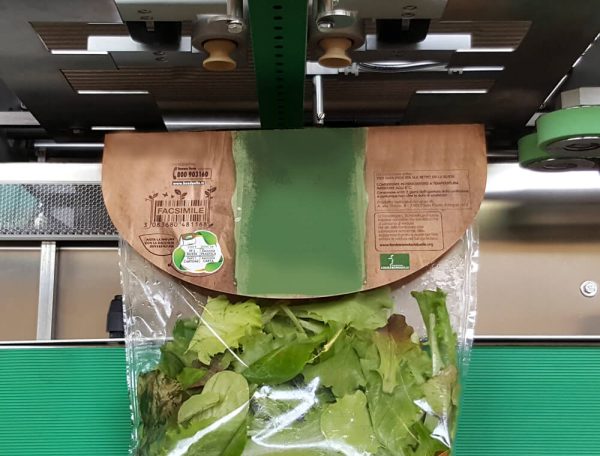

The Fold & Fix carton header machine with the Clippy Big placer is equipped with suction cups, picking carton header from a loading stacker and placing them on the packaging line.

The Clippy Big placer has a high-capacity horizontal loading magazine.

Similarly, a friction feeder could carry the cards to the application point, while a placing device with suction cups proceeds with the laying of the cardboard on the bag.

The programming keypad allows an operator to set the speed and control functions: automatic speed adjustment, distribution of more headers with just one start, control for failed picking of the product with automatic distribution block.

The carton header machine can be implemented with devices suitable for Industry 4.0 networks.

Feature of the Header Cards Machine

  • Frame with aluminum profile
  • Belt conveyor belt with variable speed with bag conveying guides
  • Gearmotor with inverter
  • Supports and anchoring to the base frame
  • Photocell assembly for bag detection
  • Mechanical device with horizontal pick and place suction cups
  • Control for failed picking
  • Security safeguards
  • Separate electrical panel (remote up to 3m) with integrated PLC
  • Touch Screen control panel
  • Brushless motor



Features

Features
Dispensing speed ≤ 20 pcs/h
Product size W x step customizable
Product thickness 0,1 mm
Motor type brushless
Size L - W - H 2700 x 1730 x 2060 mm
Power supply 400 V, trifase, 50-60 Hz N+PE
Electrical input 3000 W

Downloads

Etipack Carton Header - Hold & Fix (PDF, 1.21MB) Etipack Clippy Pick & Place - Standard (PDF, 0.54MB) Etipack Friction Feeder - Whizzy (PDF, 0.07MB) Etipack Clippy Pick & Place - Big (PDF, 0.53MB)
