Large capacity pick-and-place machine for high volume production with less down-time

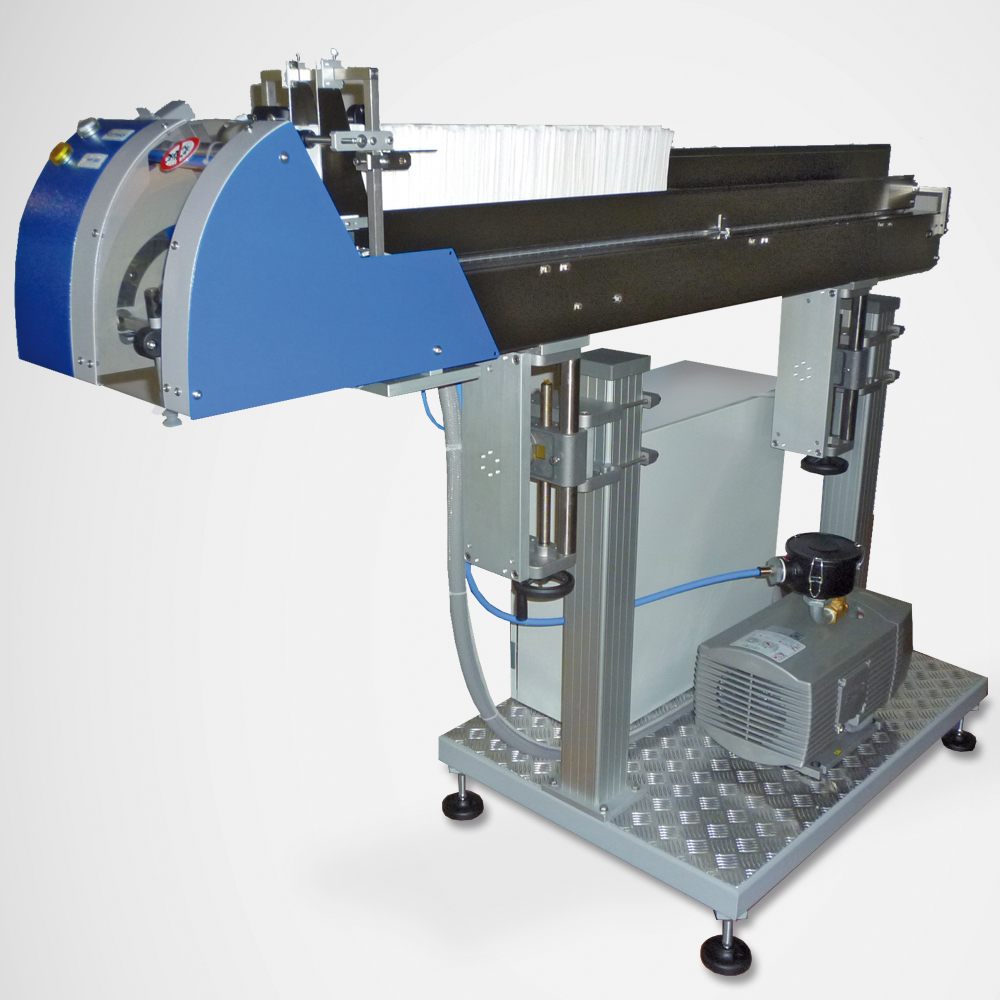

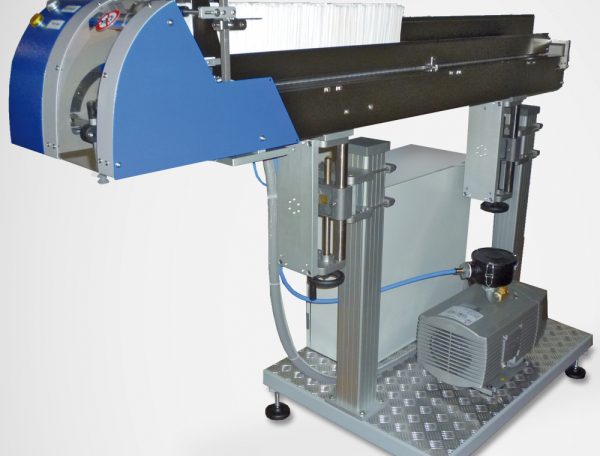

The Etipack Clippy Placer (Big) is the extra large version of the Clippy Placer Standard pick-and-place machine. It is equipped with vacuum pads that pick products from a horizontal loading stack and places them onto a packaging line. This Big version features an extra large loading stack 1,500mm long, for higher productivity and can place items such as flow-wrapped packs, single sided and 2, 3 and 4-sided sachets, flat cartons and cards.
The programming keypad allows the operator to set speed and controls, in a user-friendly manner, functions such as; automatic speed adjustment, multiple product distribution and control of missed picking with automatic stop.
Features of the Clippy (Big) pick-and-place

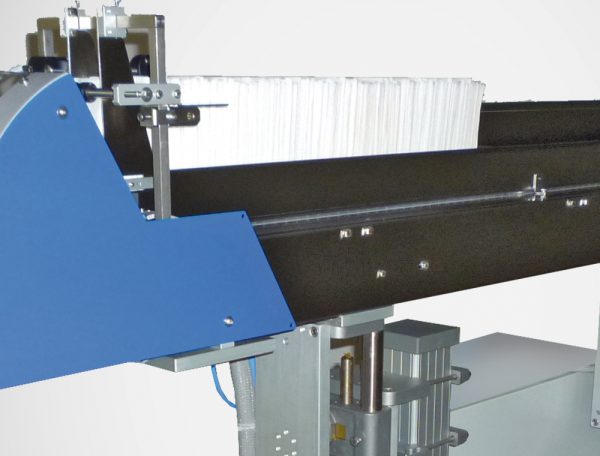

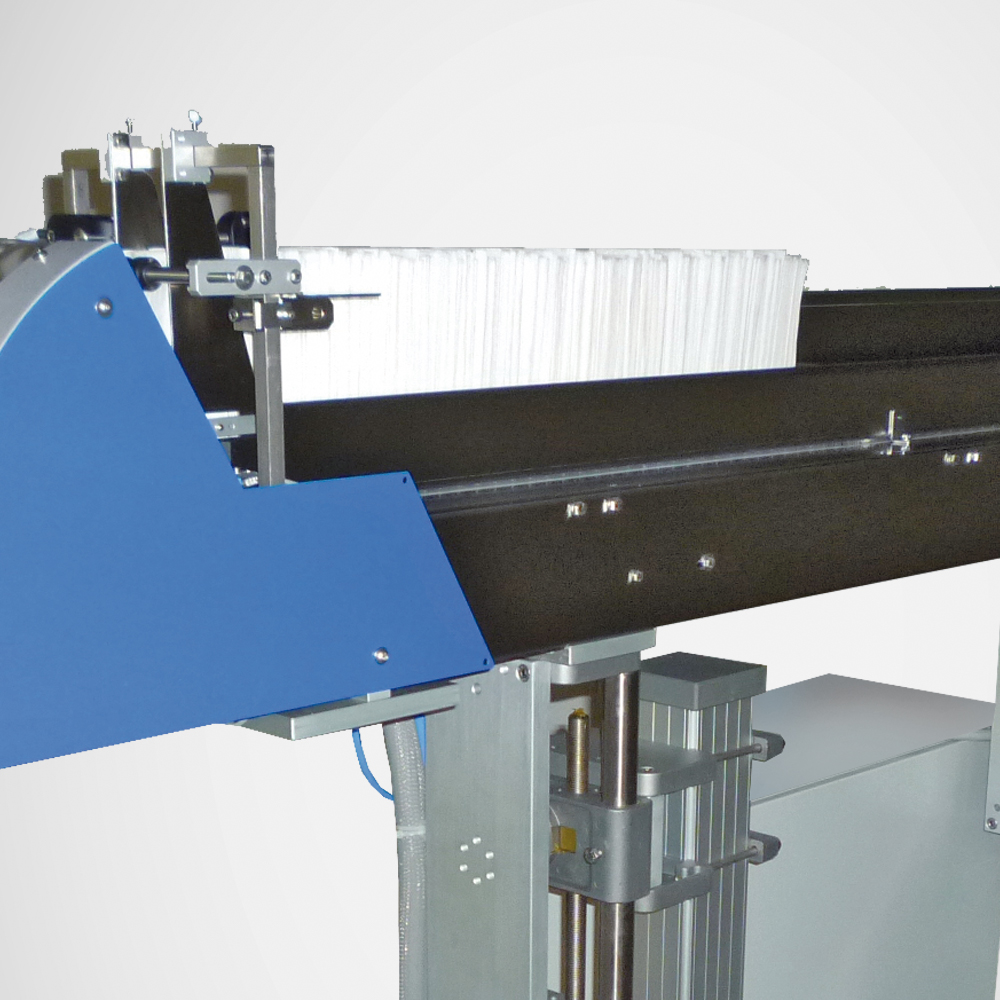

- High capacity loading stack 1,500mm long with independent motor
- Mechanical device with vacuum pad for horizontal positioning
- Control on missed picking
- Venturi vacuum pump
- Safeguards on kinematic
- Separate control box (remote terminal up to 3m) with integrated PLC
- Separate control panel (remote up to 3m)
- Brushless motor
Ancillary devices
- Start for product picking and placing
- Control on minimum load
- Encoder
- Programming keypad
- Vacuum pump (according to products)
