Rotary placer for high-speed picking-and-placing of products from a stack

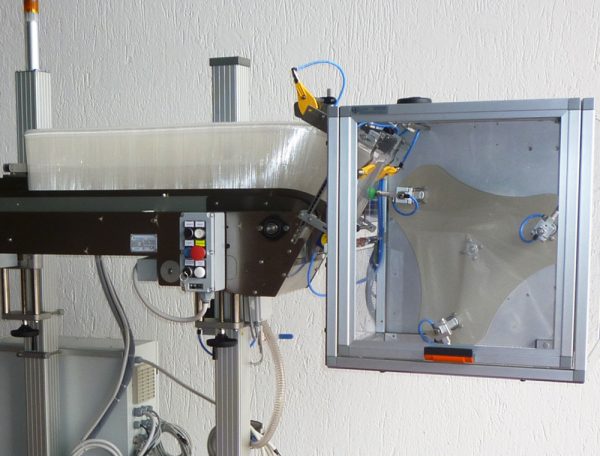

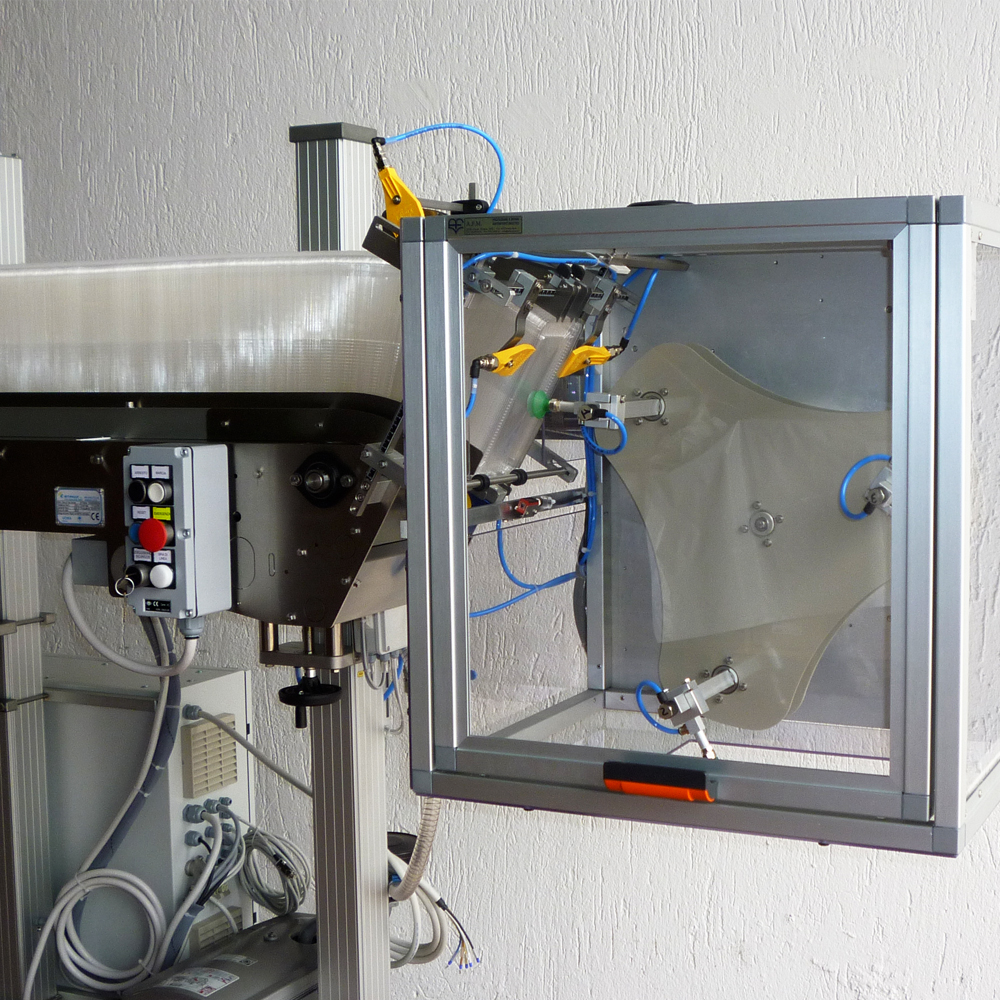

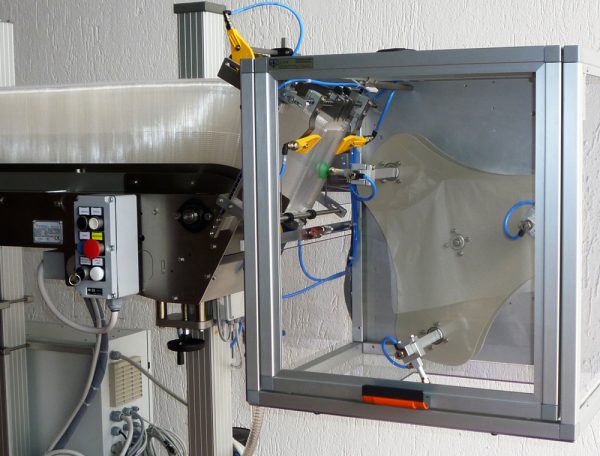

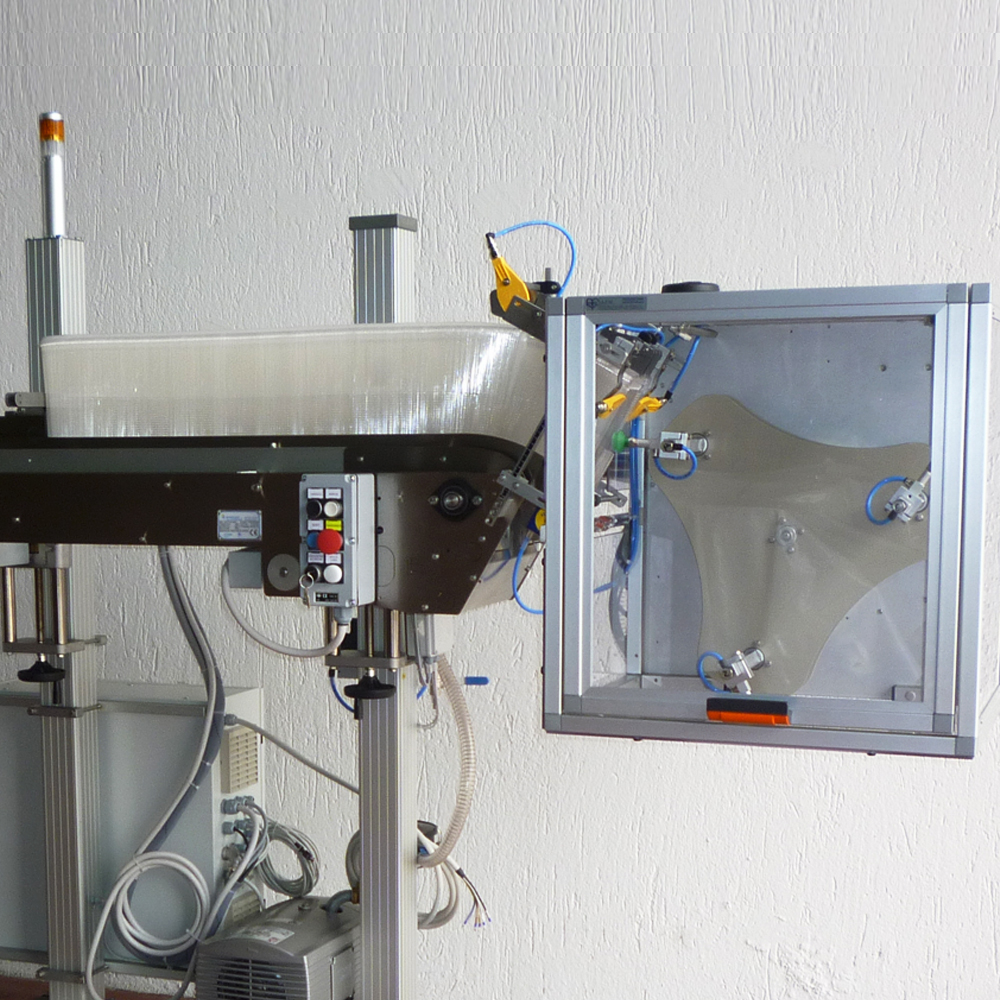

The Etipack Clippy Rotary placer is a pick-and-place device with a high-speed rotary movement that uses vacuum pads to pick products from a loading stack and places them horizontally on a packaging line. The Clippy Rotary is ideal to dispense flow-wrapped sachets of 2, 3 and 4 sides, coupons, cards and flat boxes made of non-porous materials.
The rotary movement of Clippy Rotary is designed to meet the requirements of the highest productivity, with an output speed up to 400 pcs/min as well as a large capacity, thanks to a horizontal loading stack equipped with a control on minimum load.
The programming keypad, on the brushless version, allows operators to set speed and control functions easily: automatic speed adjustment, multiple product distribution, control of missed picking with automatic stop.
Features of the rotary placer

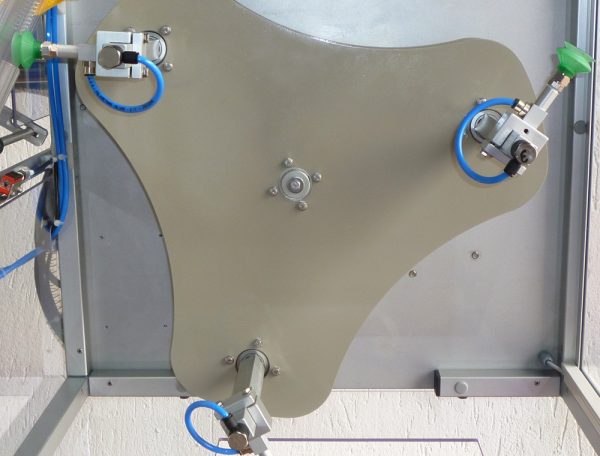

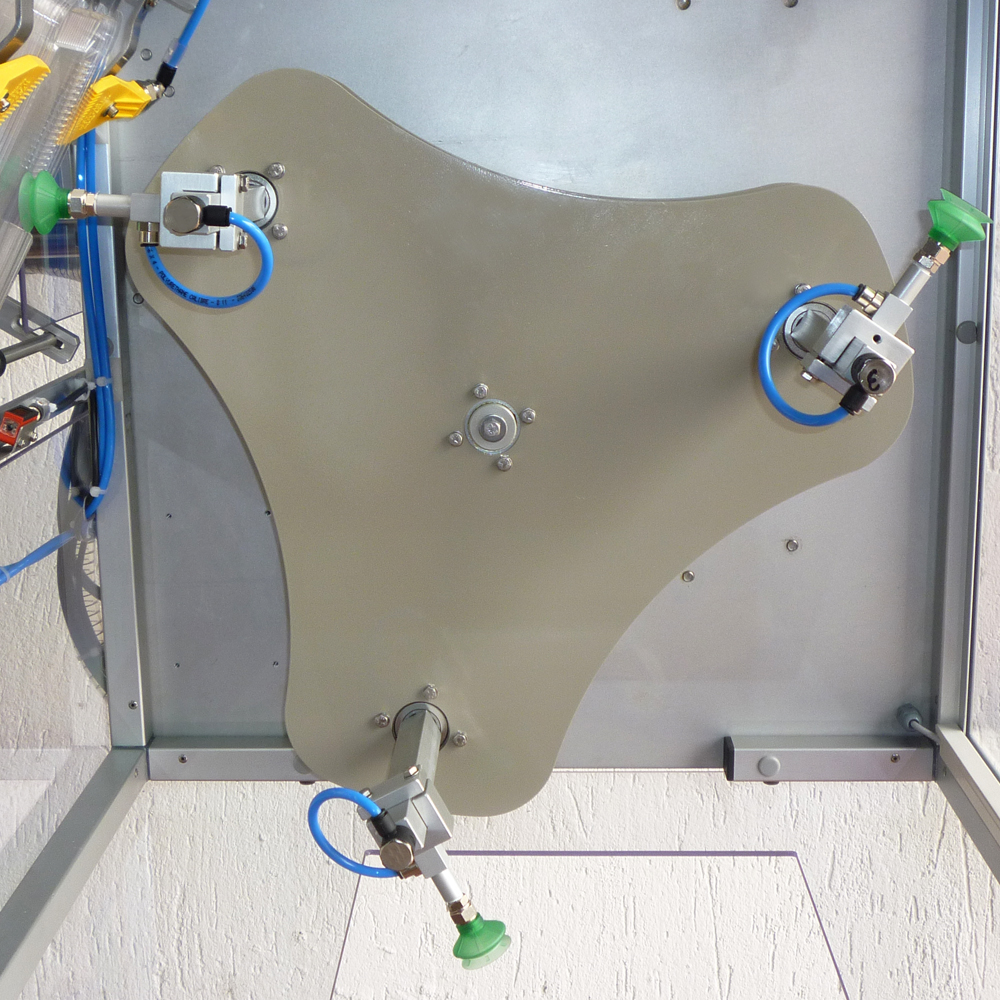

- Kinematic mechanism with rotor at 3 positions
- Vacuum pads with independent electrical drive
- Venturi vacuum generator
- Turbine vibrator

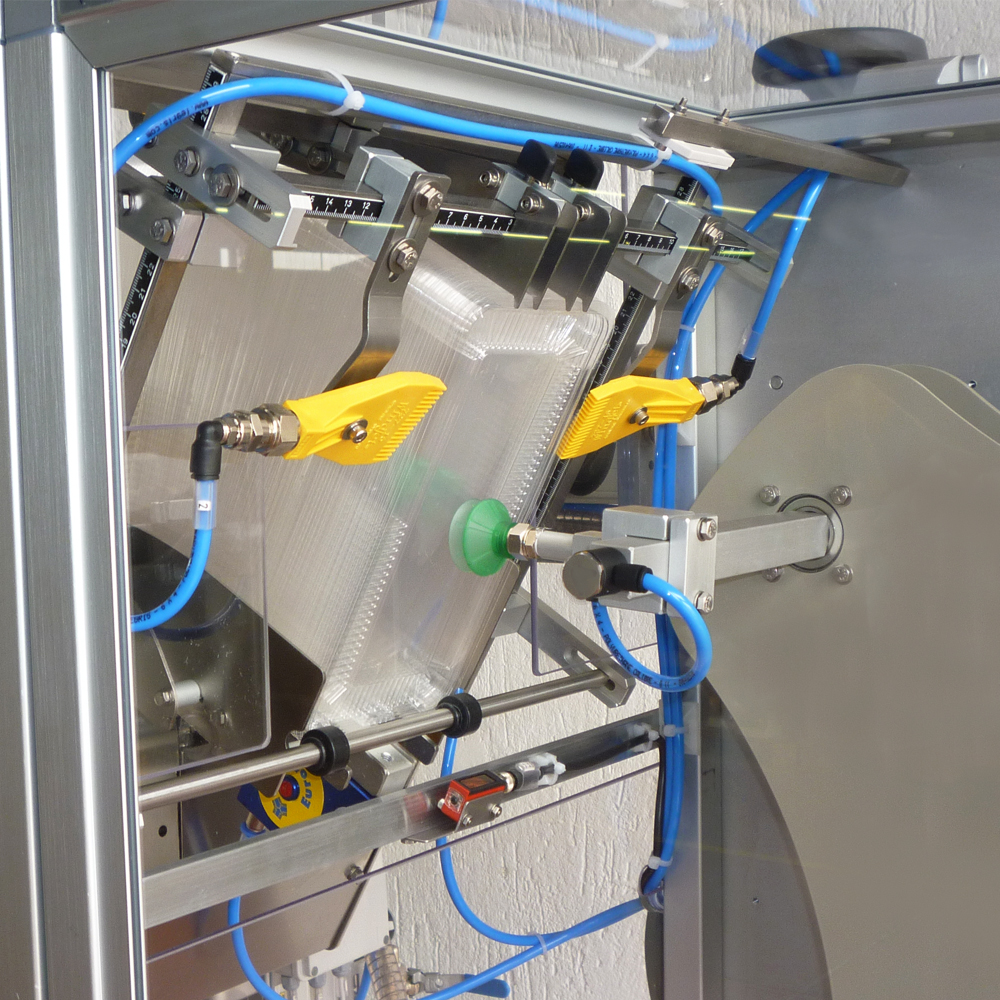

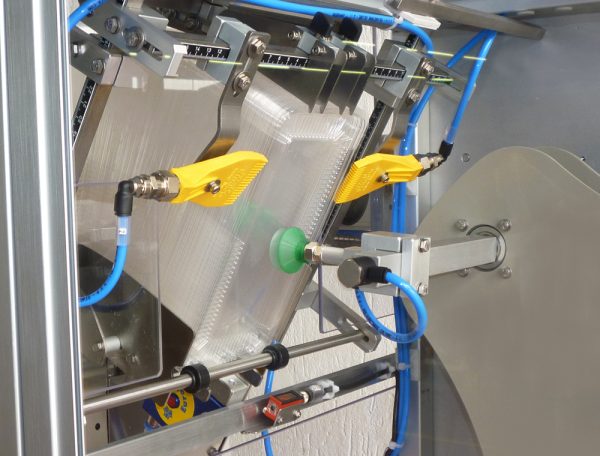

- Horizontal loading stack 1300 mm long
- Encoder
- Electro-pneumatic system
- Control on missing picking
- Safeguards
- Separate control box (remote terminal up to 3 m) with integrated PLC* (brushless version)
- Separate control panel (remote up to 3 m)
- Brushless motor
Ancillary devices
- Start for product picking and placing
- Programming keyboard
- Vacuum pump (according to products)
